Automotive Electronics & Wiring Reference
Connector pinouts, wiring diagrams and standards for trailer plugs, OBD-II, relays, fuses, charging systems, sensors, power accessories and car audio — covering US, European and Japanese conventions.
Automotive Electronics & Wiring Reference
Connector pin-outs, wiring standards and diagnostic procedures for trailer plugs, the OBD-II port, CAN and LIN networks, relays, fuses, wire gauge and voltage drop, charging and starting systems, sensors and injectors, lighting and bulb fitments, power accessories and factory car-audio connectors — covering US (SAE), European (ISO/DIN) and Japanese conventions, with every claim sourced and every unverified detail flagged.
Before you probe anything. Disconnect the battery negative terminal first when you need the system dead. Airbag/SRS modules hold charge after power-down — published guidance is to wait a minimum of 5–10 minutes, and the figure is model-specific, so follow the vehicle’s own service procedure rather than a rule of thumb. Never work inside orange-sheathed high-voltage hybrid/EV cabling without the manufacturer’s de-energising procedure and the correct PPE. Do not use a test light on airbag, CAN or low-current module circuits — it can damage them; use a 10 MΩ digital multimeter. Everything on this page is a reference: pin-outs, colours and even numbering vary by make, model and model year, so confirm against the factory wiring diagram and measure before you cut, splice or power a circuit.
Each tab is a self-contained reference for one system. Tables state the standard they come from, and where a detail could not be confirmed against a credible published source we say so in the table rather than filling the gap with a guess — a wrong pin number on a wiring page is worse than a missing one.
- Standardised. Defined in a published standard and reproducible on any compliant vehicle — DIN 72552 terminal codes, OBD-II pin functions, ISO trailer pin functions, bulb categories.
- Conventional. Near-universal industry practice, but not mandated — relay terminal functions, aftermarket ISO 10487 harness colours, most fuse colour codes.
- Vehicle-specific. Varies by make, model, model year and trim — general wire colours, factory head-unit pin-outs, physical terminal positions on a relay or alternator case.
The single most common source of bad information online is citing the wrong standard number. This table is the corrected reference set for everything covered on this page.
| Standard | What it actually covers | Region |
|---|---|---|
| SAE J1239 | Four-, five- and eight-conductor electrical connectors for automotive-type trailers — the flat connectors, trailers up to 4,540 kg | US / Canada |
| SAE J2863 | Automotive Trailer Tow Connector — the light-duty 7-way “RV blade” | US / Canada |
| SAE J560 | Primary and auxiliary seven-conductor connector for truck–trailer jumper cable — heavy commercial, round pin. Not the RV blade, and not electrically compatible with it | US / Canada |
| ISO 1724 | 7-pin “12N” trailer connector | Europe / UK |
| ISO 3732 | 7-pin “12S” auxiliary trailer connector | Europe / UK |
| ISO 11446 | 13-pin trailer connector (“Jaeger” type) | Europe / international |
| ISO 1185 / ISO 3731 | 7-pin 24 V heavy-duty lighting connectors (“24N” / “24S”) | International |
| ISO 7638-1 / -2 | 7-pin ABS/EBS brake connector — -1 for 24 V, -2 for 12 V systems | International |
| ISO 12098 | 15-pin 24 V combined connector, intended to replace the 24N + 24S pair | International |
| SAE J1962 | OBD-II diagnostic connector — Type A (12 V) and Type B (24 V), which are deliberately not intermateable | Worldwide |
| ISO 15765-4 | Diagnostics over CAN — the OBD-II profile; permits only 250 or 500 kbit/s | Worldwide |
| ISO 11898-1 / -2 / -3 | CAN: data link layer; high-speed physical layer; low-speed fault-tolerant physical layer | Worldwide |
| ISO 17987 series | LIN bus — protocol, transport and electrical physical layer | Worldwide |
| IEEE 802.3bw / 802.3bp | 100BASE-T1 and 1000BASE-T1 single-pair automotive Ethernet | Worldwide |
| DIN 72552 | Terminal designation codes — 30, 31, 15, 50, 58L/58R, 85/86/87, B+/D+/DF/W. The backbone of European wiring diagrams | Europe (used worldwide) |
| ISO 7588-1 | Electrical/electronic switching devices — relays and flashers: dimensional characteristics and functional allocation of terminals | Worldwide |
| SAE J1284 + ISO 8820-3 Type C | Standard blade fuses (ATO / ATC) | Worldwide |
| SAE J2077 + ISO 8820-3 Type F | Miniature blade fuses (MINI) — this standard covers the mini size only | Worldwide |
| SAE J1888 + ISO 8820-3 Type E | High-current time-lag fuses (MAXI) | Worldwide |
| SAE J156 | Fusible link wire | US / Canada |
| SAE J1128 / J1127 | Low-tension primary cable (GPT, TWP, SXL, GXL, TXL) / battery cable (SGT, SGR, SGX) — sized in AWG | US / Canada |
| ISO 19642 series | Road-vehicle cables, sized in mm² — supersedes ISO 6722-1, ISO 6722-2 and ISO 14572 | International |
| ISO 10487 | Connections for car radios — the generic Block A / Block B / Block C head-unit connector | Worldwide |
| UN R37 / R99 / R128 | Filament, gas-discharge (HID) and LED light sources — the bulb categories themselves | UNECE markets |
| FMVSS 108 | 49 CFR 571.108 — lamps, reflective devices and associated equipment, including which replaceable light sources are legal | US / Canada |
Sources: SAE J1239, SAE J2863, SAE J560, ISO trailer connector standards, ISO 7588-1, SAE J2077, ISO 19642-1, FMVSS 108.
Nearly every 12 V fault comes down to power, ground or a connection. Working in this order finds it faster than chasing components.
Reproduce the fault before touching anything, and note whether it is constant, intermittent, or load/temperature dependent. Pull stored fault codes first — they tell you which circuit to test.
There are fewer ground paths than supply paths, and they corrode more, because the return runs through painted, bolted body joints. A voltage-drop test on the ground takes a minute.
A continuity or static-voltage check passes on a connection that fails under current. Load the circuit and measure across each section — see the Wire, Drop & Grounds tab for the limits.
Insert a fine probe alongside the wire at the back of the connector. Piercing the insulation breaks the seal and starts corrosion that will come back as a fault months later.
Replace the component last. A sensor reading out of range is far more often a supply, ground or connector problem than a failed sensor.
Simplified pin layout — always match by color/function, not left-right position.
| Pin | Wire color | Function |
|---|---|---|
| 1 | White | Ground (return) |
| 2 | Brown | Tail / running / license-plate lights |
| 3 | Yellow | Left turn signal & brake light |
| 4 | Green | Right turn signal & brake light |
Pin 7 is the larger center pin found on most RV/recreational trailer plugs; pins 1–6 ring around it. Verify orientation against the physical key/notch — some manufacturers rotate the numbering.
| Pin | Wire color | Function |
|---|---|---|
| 1 | White | Ground (return) |
| 2 | Blue | Electric trailer brakes |
| 3 | Black | Auxiliary 12V+ (battery charge line) |
| 4 | Red | Right turn signal & brake light |
| 5 | Green | Tail / running lights |
| 6 | Yellow | Left turn signal & brake light |
| 7 | Brown | Reverse / back-up lights (center pin) |
Round “N-type” plug — pin 7 (58L) is the physical center pin; pins 1–6 ring around it. Not to be confused with the US flat 4-pin above.
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | L | Yellow | Left turn indicator |
| 2 | 54g | Blue | Rear fog light (some vehicles wire this as permanent +12V instead) |
| 3 | 31 | White | Ground / common return |
| 4 | R | Green | Right turn indicator |
| 5 | 58R | Brown | Right tail / position / number-plate light |
| 6 | 54 | Red | Stop / brake lights |
| 7 | 58L | Black | Left tail / position / number-plate light — the center pin |
Shares the 12N’s physical shell and center-pin (7) layout, with the plug/socket genders reversed on the center pin so a 12S plug cannot be mistaken for a 12N plug.
| Pin | Wire color | Function |
|---|---|---|
| 1 | Yellow | Reversing lamps |
| 2 | Blue | Spare |
| 3 | White | Ground — common for pins 1–5 |
| 4 | Green | Permanent +12V (battery) |
| 5 | Brown | Spare |
| 6 | Red | Switched +12V (via ignition) |
| 7 | Black | Ground for pin 6 — the center pin |
9 pins on the outer ring (8–13, 5, 6, 7 clockwise from the top) plus 4 pins on a raised inner cluster (1 top, 2 right, 3 bottom, 4 left) — confirmed from the ISO 11446 reference diagram on Wikipedia’s “ISO standards for trailer connectors” article. The dark tab marks the physical key at the bottom of the shell, between pins 12 and 13. Backward-compatible with 12N wiring (pins 1–7 keep the same functions); adds power, reverse and ground circuits for caravans/campers.
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | L | Yellow | Left turn indicator |
| 2 | 54g | Blue | Rear fog light |
| 3 | 31 | White | Ground / common return for pins 1–8 |
| 4 | R | Green | Right turn indicator |
| 5 | 58R | Brown | Right tail / position light |
| 6 | 54 | Red | Stop / brake lights |
| 7 | 58L | Black | Left tail / position light |
| 8 | — | Pink | Reversing light |
| 9 | 30 | Orange | Permanent live +12V (unswitched, e.g. fridge) |
| 10 | 15 | Grey | Switched live +12V (via ignition, charge line) |
| 11 | 31 | Black/White | Ground for pin 10 |
| 12 | — | Light grey / spare | Reserved for future allocation |
| 13 | 31 | Red/White | Ground for pin 9 |
7-pin version shown (ISO 7638-2 for 12V systems, key tab between pins 3 & 4; ISO 7638-1 for 24V systems, key tab at pin 5). An older 5-pin variant exists on some legacy equipment.
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | 30 | Red | Permanent +V for brake control valves |
| 2 | 15 | Black | Switched +V (ignition) for ABS/EBS electronics |
| 3 | 31 | Yellow | Ground for electronics (pin 2) |
| 4 | 31 | Brown | Ground for control valves (pin 1) |
| 5 | — | White | ABS fault indication (active low) |
| 6 | — | Green/White | CAN High (EBS/ABS data) |
| 7 | — | Brown/White | CAN Low (EBS/ABS data) |
Both connectors share this 7-pin “Suzie” shell; 24N carries the main lighting circuits, 24S carries auxiliary functions. SAE J560’s commercial variant uses the same physical connector as ISO 1185 but a different function table — don’t assume they match pin-for-pin.
ISO 1185 “24N” (primary lighting, 24V)
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | 31 | White | Ground |
| 2 | 58L | Black | Left tail / position / plate light |
| 3 | L | Yellow | Left turn indicator |
| 4 | 54 | Red | Stop lamps |
| 5 | R | Green | Right turn indicator |
| 6 | 58R | Brown | Right tail / position / plate light |
| 7 | — | Blue | Trailer brake control (ISO 1185) — SAE J560’s commercial pin 7 use differs |
ISO 3731 “24S” (auxiliary, 24V)
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | 31 | White | Ground |
| 2 | — | Black | ABS fault indication |
| 3 | — | Yellow | Reversing lamps |
| 4 | 30 | Red | Permanent +24V |
| 5 | — | Green | Control via ground |
| 6 | 15 | Brown | Switched +24V (via ignition) |
| 7 | — | Blue | Rear fog lamps |
Newer connector intended to eventually replace the ISO 1185 + ISO 3731 pair on a single plug. Does not replace the separate ISO 7638 ABS/EBS connector.
| Pin | DIN 72552 | Wire color | Function |
|---|---|---|---|
| 1 | L | Yellow | Left turn indicator |
| 2 | R | Green | Right turn indicator |
| 3 | — | Blue | Rear fog lamps |
| 4 | 31 | White | Ground for pins 1–3 and 5–12 |
| 5 | 58L | Black | Left tail / position / plate light |
| 6 | 58R | Brown | Right tail / position / plate light |
| 7 | 54 | Red | Stop lamps |
| 8 | — | Pink | Reversing lamps |
| 9 | 30 | Orange | Permanent +24V |
| 10 | — | Grey | Brake wear indicator |
| 11 | — | Black/White | Parking brake applied indication (air-pressure loss) |
| 12 | — | Blue/White | Lift axle control |
| 13 | 31 | Red/White | Ground for pins 14 & 15 |
| 14 | — | Green/White | CAN High (not ABS/EBS) |
| 15 | — | Brown/White | CAN Low (not ABS/EBS) |
- 7-to-13-pin and 13-to-7-pin adapters exist for mixing connector types, but only carry over the circuits both ends support (e.g. a 13-pin tow bar with a 7-pin caravan loses the extra power/ground circuits).
- US and European trailer electrics are not physically or electrically compatible — a proper adapter harness (not just a shape adapter) is needed to cross between them, and brake-controller wiring in particular should be done by someone familiar with the destination market’s system.
- Always check your trailer lighting circuit’s total current draw against the tow vehicle’s wiring/fuse rating, especially with LED-converted trailers where load-sensing indicator relays can behave unexpectedly with very low current draw.
Cross-checked against: Wikipedia — ISO standards for trailer connectors, the erich-jaeger SAE/ISO standards reference pages, and DIN 72552 terminal-code conventions. If you spot a mismatch against a real connector or an OEM diagram, treat the OEM source as authoritative and let us know so this page can be corrected.
Vehicle-side socket, viewed face-on: pins 1–8 on the upper row, 9–16 on the lower row, both rows at the same pitch inside a trapezoidal D-shaped shroud with flat blade contacts. Pin numbers are moulded into the shell — read them on the actual socket rather than relying on any drawing.
| Pin | Signal | Notes |
|---|---|---|
| 1 | Manufacturer discretionary | GM: single-wire CAN (SAE J2411 / GMLAN). VW/Audi: switched +12 V. Mercedes: K-line ignition control. Ford’s discretionary lines are pins 3 and 11, not pin 1 |
| 2 | SAE J1850 Bus+ | Ford PWM and GM VPW both use this pin. On GM VPW it is the only bus wire — VPW is a single-wire bus |
| 3 | Manufacturer discretionary | Sometimes Chrysler CCD Bus(+); Ford DCL |
| 4 | Chassis ground | Bonded to the body/frame |
| 5 | Signal ground | The reference a scan tool should measure against |
| 6 | CAN High (CAN-H) | ISO 15765-4. Mandatory as the OBD basis on US vehicles from model year 2008 |
| 7 | K-Line | ISO 9141-2 / ISO 14230-4 (KWP2000) — common on 1990s–2000s European and Asian vehicles |
| 8 | Manufacturer discretionary | Used on some platforms for a secondary bus or for Ethernet (DoIP) activation |
| 9 | Manufacturer discretionary | — |
| 10 | SAE J1850 Bus− | SAE J1850 PWM only (Ford). GM’s VPW variant leaves this pin unused — a frequent error in online pin-out charts |
| 11 | Manufacturer discretionary | Ford DCL |
| 12 | Manufacturer discretionary | — |
| 13 | Manufacturer discretionary | — |
| 14 | CAN Low (CAN-L) | ISO 15765-4, the differential partner of pin 6 |
| 15 | L-Line | Optional in the ISO 9141-2 / ISO 14230-4 standards. Where fitted it is a unidirectional 5-baud wake-up line, not a differential partner for K-line |
| 16 | Battery power (Vbatt) | Unswitched — live with the ignition off. +12 V on Type A, +24 V on Type B |
A very widely repeated claim is that the OBD-II connector is physically identical worldwide. It is not: SAE J1962 defines two variants, and they are deliberately built so a 12 V tool cannot be plugged into a 24 V vehicle.
| Type A | Type B | |
|---|---|---|
| System voltage | 12 V | 24 V |
| Pin 16 supply | +12 V | +24 V |
| Centre keying groove | Continuous across the full width | Interrupted in the middle, which physically blocks a Type A plug |
| Marking | — | D-area of the shroud marked blue |
| Typical vehicles | Cars, light commercials | Heavy trucks, buses and other 24 V equipment |
- CAN (pins 6 & 14) — ISO 15765-4. Mandatory as the OBD basis on US-market vehicles from model year 2008, and the near-universal case on anything reasonably modern. The standard permits only 250 or 500 kbit/s for the diagnostic bus.
- ISO 9141-2 / KWP2000 (pin 7, optionally pin 15) — common on 1990s–2000s European, Japanese and Korean vehicles.
- SAE J1850 PWM (pins 2 & 10) — Ford, late 1990s to mid 2000s US market. Two-wire.
- SAE J1850 VPW (pin 2 only) — GM, same era. Single-wire; pin 10 is not used.
- EOBD is the European mandate — same J1962 connector and the same emissions-relevant pins. It applied to EU petrol cars from 1 January 2001 and diesels from 1 January 2004.
The documented requirement is that the connector sits in the passenger compartment on the driver’s side, within 0.61 m (2 ft) of the steering wheel, and be accessible without tools. A manufacturer that obtains an exemption may place it elsewhere within reach of the driver’s seating position — which is why the looser “somewhere under the dash” description you see online is the fallback clause, not the primary rule.
Sources: On-board diagnostics (pin functions, mandates), Data link connector (Type A / Type B, location), CSS Electronics — OBD2 explained, DashLogic J1962 pin-out (PWM-only note on pin 10). The physical row/orientation shown in the diagram matches every published J1962 illustration but is not stated in words by any standards-body text we could access — confirm against the numbers moulded into the socket.
Tools that make good use of this connector.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
A modern vehicle has dozens of control modules that all need the same information — road speed, engine temperature, whether a door is open. Running a dedicated wire from every sensor to every module would need kilometres of copper. Instead, each module broadcasts its data onto a shared two-wire bus and every other module listens. That is why cutting into what looks like an unimportant pair of wires can put a whole car into limp mode.
High-speed CAN topology: a single twisted pair running the length of the vehicle with a 120 Ω terminating resistor at each physical end of the bus (not at each node). The gateway module links this bus to the other, slower buses.
| Standard | What it defines | Status |
|---|---|---|
| ISO 11898-1 | Data link layer and physical coding sublayer. Covers Classical CAN, CAN FD and CAN XL | Current (3rd ed., 2024) |
| ISO 11898-2 | High-speed physical medium attachment — the two-wire differential bus. Also covers Signal Improvement Capability (SIC) | Current (2024) |
| ISO 11898-3 | Low-speed, fault-tolerant physical layer (above 40 kbit/s up to 125 kbit/s) | Still valid, but no longer recommended for new designs |
| ISO 15765-4 | Diagnostics over CAN — the OBD-II profile. Permits only 250 or 500 kbit/s, 11-bit and 29-bit identifiers | Current |
| Medium | Twisted pair, CAN-H + CAN-L, differential |
| Cable impedance | 120 Ω (108–132 Ω permitted) |
| Termination | 120 Ω at each physical end. Split termination (2 × 60 Ω with a capacitor to ground) is also accepted |
| Max bit rate | 1 Mbit/s classical; higher in the CAN FD data phase |
| Single-wire break | Bus stops communicating |
| Medium | Two wires, but each can run single-ended if the other fails |
| Termination | Distributed inside every node, typically several hundred Ω to kΩ — not 120 Ω at the ends |
| Max bit rate | 125 kbit/s |
| Single-wire break | Keeps working on the surviving wire (that is the point) |
| Typical use | Body / comfort bus: doors, seats, mirrors, lighting |
| State | CAN-H | CAN-L | Differential |
|---|---|---|---|
| Recessive (logic 1, idle) | ≈2.5 V | ≈2.5 V | ≈0 V |
| Dominant (logic 0) | ≈3.5 V | ≈1.5 V | ≈2.0 V |
| 0.9–2.0 V differential | Read as dominant |
| −1.0 to 0.5 V differential | Read as recessive |
| 0.5–0.9 V differential | Indifferent zone — undefined |
| State | CAN-H | CAN-L |
|---|---|---|
| Recessive (idle) | ≈0 V | ≈5 V |
| Dominant | ≈3.6–4 V | ≈1–1.4 V |
| Bus / domain | Bit rate | Confidence |
|---|---|---|
| Powertrain / engine, high-speed CAN | 500 kbit/s | Documented |
| OBD-II diagnostic CAN | 250 or 500 kbit/s | Mandated by ISO 15765-4 |
| Body / comfort, low-speed fault-tolerant CAN | up to 125 kbit/s | Per ISO 11898-3 |
| Chassis / high-speed CAN, general | up to 1 Mbit/s | Documented |
| Truck / trailer (ISO 11992-1) | 125 kbit/s | Single source |
LIN exists because putting a full CAN transceiver in a wing-mirror motor is not worth the cost. It is a single wire, one master and up to fifteen slaves, polled on a fixed schedule — no arbitration and no collisions. Most modern cars have ten or more LIN nodes hanging off CAN modules.
| Standard | ISO 17987 series (parts 1–4, 6–8). Predecessor LIN 2.2A is still widely implemented; US equivalent is SAE J2602 |
| Physical layer | Single wire plus chassis ground, derived from the ISO 9141 K-line |
| Bit rate | 1–20 kbit/s (commonly 9.6, 10.4 or 19.2 kbit/s) |
| Architecture | One master + up to 15 slaves, time-triggered schedule table |
| Max bus length | 40 m |
| Signalling | Recessive = pulled up toward battery voltage (logic 1); dominant = pulled to ground (logic 0) |
Window lift motors, mirror adjust and fold, wiper motors, rain and light sensors, seat position modules, door modules, HVAC blend flaps, steering-wheel switch packs, alternator regulators and engine-cooling actuators.
Ignition off, key out, wait for the modules to power down. Measure resistance between CAN-H and CAN-L — at the OBD-II socket that is pin 6 to pin 14.
| Reading | What it means |
|---|---|
| ≈60 Ω | Correct. Two 120 Ω terminators in parallel — wiring and both terminations intact |
| ≈120 Ω | Only one terminator reachable — one is missing, or the bus is broken between the two |
| ≈40 Ω | A third terminating resistor is on the bus — very common after an aftermarket accessory is fitted |
| Below 40 Ω, toward 0 | Short between CAN-H and CAN-L, or a damaged CAN port inside a module |
| Open / very high | Break in the harness, or a disconnected connector |
| Measurement | Healthy | Suspect |
|---|---|---|
| CAN-H to CAN-L at an unplugged module | Tens of kΩ | Far outside that range |
| CAN-H to ground | Megohms / open | ≤10 kΩ suggests damage |
| CAN-L to ground | Megohms / open | ≤10 kΩ suggests damage |
| Measurement | Typical healthy | What a bad reading means |
|---|---|---|
| CAN-H to chassis ground | 2.5–3.0 V DC | At battery voltage = short to B+; at 0 V = short to ground or open |
| CAN-L to chassis ground | 2.0–2.5 V DC | Same interpretations; below about 1.4 V on either line is a likely failure |
| Polarity | CAN-H reads higher than CAN-L | Reversed = the two wires are swapped |
| Both lines equal and non-2.5 V | — | Suggests the two lines are shorted together |
Sources: CAN in Automation — HS transmission & levels, ISO 11898-2:2024, ISO 11898-3:2006, Kvaser — testing CAN termination, Pico Technology — CAN physical layer, CSS Electronics — LIN bus, Kvaser — LIN bus, IEEE 802.3bw, IEEE 802.3bp.
Electrical schematic, not a physical pin-out. The solid armature line shows the resting (de-energised) position; the dashed line shows where it swings to when the coil is energised.
| Terminal | Circuit | Function |
|---|---|---|
| 30 | Common / power in | Feeds from the battery or a fused +12 V supply — the terminal the switched output is drawn from |
| 86 | Coil trigger | Usually the switched +12 V side of the coil, from a switch, module or ECU output |
| 85 | Coil ground | Usually the ground side of the coil. Critical exception below for relays with an internal suppression diode |
| 87 | Normally Open (NO) output | Connected to 30 only while the coil is energised — the most commonly used output |
| 87a | Normally Closed (NC) output | Connected to 30 while de-energised, disconnects when energised. Present on some 5-pin relays — but see the warning below |
| Term | What it really is |
|---|---|
| ISO 7588-1 | The actual international standard: Road vehicles — Electrical/electronic switching devices — Part 1: Relays and flashers. It specifies dimensional characteristics and the functional allocation of terminals |
| “280” | A terminal size, not a standard number: 2.8 mm blades. That is the micro relay family |
| ISO mini relay | The familiar Bosch-type cube relay — 6.3 mm blades |
| ISO micro relay | The smaller, flatter body on 2.8 mm blades — often called “280 series” in catalogues |
| DIN 72552 | Where the numbers 30 / 85 / 86 / 87 / 87a come from — the German terminal-designation standard |
Sources: ISO 7588-1, DIN 72552, 12 Volt Planet relay guide, Hagerty — understanding relays (Type A / Type B layouts), Littelfuse ISO micro relay data sheet (2.8 mm), Omron G8JN ISO mini relay data sheet (6.3 mm).
A relay lets a small-gauge wire and a low-current switch — a dash button, an ECU output pin — control a much larger current: headlights, horns, fuel pumps, fans, winches. The load current never passes through the switch or the thin wire running to the dashboard, which moves both the heat and the voltage drop away from long, thin control wiring.
Handy for adding or diagnosing relay-controlled circuits.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.

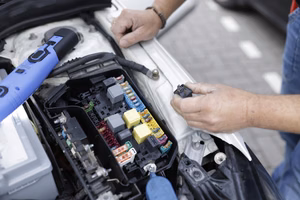

Drawn to relative scale from published body dimensions: MINI ≈ 10.9 × 16.4 mm, Standard (ATO/ATC) ≈ 19.1 × 18.8 mm, MAXI ≈ 29.2 × 34.3 mm. They are not interchangeable in the same holder.
| Family | Standards | Current range | Typical use |
|---|---|---|---|
| MINI | SAE J2077 + ISO 8820-3 Type F | 2–30 A | Modern interior/engine-bay fuse boxes where space is tight |
| Standard (ATO / ATC) | SAE J1284 + ISO 8820-3 Type C | 1–40 A | The classic blade fuse; still the default on accessory and aftermarket wiring |
| MAXI | SAE J1888 + ISO 8820-3 Type E | 20–100 A (time-lag) | Main feeds: alternator, cooling fans, ABS pump, distribution to sub-fuse-boxes |
| Rating | Colour | MINI? |
|---|---|---|
| 1 A | Black | — |
| 2 A | Grey | Yes |
| 3 A | Violet | Yes |
| 4 A | Pink | Yes |
| 5 A | Tan | Yes |
| 7.5 A | Brown | Yes |
| 10 A | Red | Yes |
| 15 A | Blue | Yes |
| 20 A | Yellow | Yes |
| 25 A | Natural / clear | Yes |
| 30 A | Green | Yes |
| 35 A | Blue-green | — |
| 40 A | Orange | — |
| Rating | Colour |
|---|---|
| 20 A | Yellow |
| 30 A | Green |
| 40 A | Orange |
| 50 A | Red |
| 60 A | Blue |
| 70 A | Tan |
| 80 A | Clear |
| 100 A | Purple |
A fuse is not a switch with a threshold — it is a thermal device with a time–current curve. Understanding that curve explains both why a fuse survives a motor’s inrush and why it will not protect a device from a modest overload.
| Current | Time to open |
|---|---|
| 135 % of rating | 0.35–0.75 s minimum, up to 600 s (10 minutes) maximum |
| 200 % | 0.10–0.15 s minimum, up to 5 s maximum |
| 350 % | 0.02–0.08 s minimum, up to 0.5 s maximum |
| 600 % | 0.10 s maximum (1–30 A), 0.15 s maximum (35–40 A) |
Manufacturer guidance is to run a fuse at no more than 75 % of its nominal rating continuously, which inverts to sizing the fuse at roughly 135 % of the continuous load and rounding up to the next standard size. Then apply the hard cap: the fuse rating must never exceed the derated ampacity of the wire it protects. If 135 % of the load exceeds what the wire can carry, the wire is too small — upsize the wire, never the fuse.
| Type | What it is | Where you will find it |
|---|---|---|
| Torpedo / bullet fuse | Ceramic, 6 × 25 mm with conical metal ends, to DIN 72581. Not glass, and not bayonet-fitting | European vehicles into the 1980s — classic VW, Mercedes, BMW, Volvo |
| Glass cartridge (AG) | Glass tube with metal caps — AGC, AGU and similar. “AG” stands for Automobile Glass | The North American convention up to about 1981; still used in aftermarket audio and accessory inline holders |
| LP-MINI / Micro2 / Micro3 | Lower-profile and narrower blade families developed to shrink modern fuse boxes | Most vehicles from roughly the 2010s onward |
| JCASE / cartridge | Female-blade cartridge fuse, typically 20–60 A, physically keyed | Japanese and increasingly global OEM main fuse boxes |
| MEGA / AMG / MIDI | Bolt-down high-current fuses, roughly 100–500 A | Alternator output, main battery distribution, large audio amplifiers, winches |
| Fusible link wire | A deliberately undersized length of specially-insulated wire to SAE J156. Sized four gauge numbers smaller than the wire it protects, maximum 9 in (230 mm) long | Battery-to-harness main feeds, especially on older vehicles |
| PTC / resettable | A polymer device whose resistance rises sharply when hot, then recovers when it cools | Power window and seat motors, mirror heaters, some accessory circuits |
Sources: Littelfuse MINI data sheet (2–30 A range), Littelfuse ATO data sheet, Littelfuse MAXI data sheet, Littelfuse ATOF (time–current, derating), Littelfuse Fuseology Selection Guide (75 % rule), Automotive fuse types, Fusible link practice (SAE J156).
Handy for fuse diagnostics and replacement.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
US automotive wire is specified in AWG by SAE J1128 (primary wire) and SAE J1127 (battery cable). Metric conductor sizes in mm² are defined by the ISO 19642 series, which supersedes ISO 6722-1, ISO 6722-2 and ISO 14572 — though you will still see ISO 6722 (and the older German DIN 72551) printed on cable data sheets.
| AWG | Exact geometric area | Nominal metric size sold against it | Typical vehicle use |
|---|---|---|---|
| 20 | 0.518 mm² | 0.50 mm² | Sensors, low-current signal |
| 18 | 0.823 mm² | 0.75 mm² | Interior lighting, signal circuits |
| 16 | 1.309 mm² | 1.0 mm² (some tables 1.5) | Lighting, small motors |
| 14 | 2.081 mm² | 2.5 mm² | Lighting, accessories |
| 12 | 3.309 mm² | 4.0 mm² | Fuel pumps, fans |
| 10 | 5.261 mm² | 6.0 mm² | High-current accessories |
| 8 | 8.366 mm² | 10 mm² | Winch and amplifier feeds |
| 6 | 13.302 mm² | 16 mm² | Alternator output, auxiliary battery |
| 4 | 21.151 mm² | 25 mm² | Battery and charging cable |
| 2 | 33.631 mm² | 35 mm² | Battery / starter |
| 1 | 42.408 mm² | 50 mm² | Battery / starter |
| 1/0 | 53.475 mm² | 50–55 mm² | Starter, main battery cable |
| 2/0 | 67.431 mm² | 70 mm² | Starter, main battery cable |
| 3/0 | 85.029 mm² | 95 mm² | Heavy-duty starter |
| 4/0 | 107.219 mm² | 120 mm² | Heavy-duty / commercial |
| SAE J1128 type | Insulation | Max continuous | Wall |
|---|---|---|---|
| GPT | PVC | 80 °C | Standard |
| TWP | Thin-wall PVC | 105 °C | Thin |
| SXL | Cross-linked PE | 125 °C | Thick |
| GXL | Cross-linked PE | 125 °C | Standard |
| TXL | Cross-linked PE | 125 °C | Extra-thin |
SXL, GXL and TXL are thermally and electrically identical — they differ only in insulation wall thickness, i.e. in abrasion resistance versus weight and bundle diameter. ISO 19642 expresses the same idea as temperature classes, roughly: class A −40 to +85 °C, B to +100 °C, C to +125 °C, D to +150 °C, and upward to class H at +250 °C.
| AWG | 80 °C insulation | 105 °C | 125 °C | 150 °C |
|---|---|---|---|---|
| 22 | 8 A | 10 A | 11 A | 12 A |
| 20 | 10 A | 13 A | 14 A | 15 A |
| 18 | 15 A | 18 A | 20 A | 22 A |
| 16 | 18 A | 24 A | 26 A | 29 A |
| 14 | 20 A | 33 A | 40 A | 40 A |
| 12 | 25 A | 45 A | 50 A | 50 A |
| 10 | 35 A | 58 A | 70 A | 70 A |
Stated conditions: one single conductor, in free air, at 30 °C ambient. Those conditions almost never exist in a vehicle — which is what the two correction steps below are for. Single published source; treat as a design starting point and confirm against your cable maker’s own data.
| Ambient | 80 °C wire | 105 °C | 125 °C |
|---|---|---|---|
| 30 °C | ×1.00 | ×1.00 | ×1.00 |
| 50 °C | ×0.75 | ×0.82 | ×0.89 |
| 70 °C | ×0.35 | ×0.61 | ×0.76 |
| 90 °C | — | ×0.30 | ×0.61 |
| 100 °C | — | — | ×0.51 |
| Conductors in the bundle | Multiplier |
|---|---|
| 2–3 | ×0.70 |
| 4–6 | ×0.60 |
| 7–24 | ×0.50 |
| 25+ | ×0.40 |
| Ohm’s law | Vdrop = I × Rcircuit |
| Round trip, metric | Vdrop = 2 × L × I × R′ |
| Circular-mil form | Vdrop = (2 × K × I × D) ÷ CM |
| Solved for size | CM = (2 × K × I × D) ÷ Vdrop |
L or D is the one-way length; R′ is the conductor resistance per metre from the cable data sheet; K is 12.9 for copper and 21.2 for aluminium; CM is the conductor area in circular mils.
| Circuit | Max drop | On 12 V |
|---|---|---|
| Critical — ECU power and ground, ignition, fuel pump, electronics, exterior lighting | 3 % | 0.36 V |
| Non-critical — interior lighting and accessories where a small brightness loss is acceptable | 10 % | 1.20 V |
These are the ABYC E-11 criteria for 12 V DC systems. They are the best-documented percentage targets for low-voltage DC wiring and the automotive aftermarket has adopted them — but they come from the marine standard; we could not find an equivalent published consumer-facing SAE percentage rule.
| Test point | Maximum acceptable drop |
|---|---|
| Across a clean connection or connector | 0.00–0.10 V |
| Across a length of wire or cable | 0.20 V |
| Across a switch | 0.30 V |
| Across a ground connection | 0.10 V |
| Across a solenoid or relay contact | 0.20 V |
| Starter circuit, whole positive side, cranking | 0.50–0.60 V |
| Starter circuit, whole ground side, cranking | 0.30–0.50 V |
| Engine block to starter housing | 0.10 V |
| Charging circuit, alternator B+ to battery +, at 1800–2000 rpm | 0.50 V |
| Charging circuit, alternator case to battery − | 0.20 V |
This topic is full of confidently-repeated folklore. Below we separate what standards bodies and connector manufacturers actually publish from what is merely widely believed.
| Claim | Verdict | What the document says |
|---|---|---|
| Automotive crimp validation is written for solderless connections | Documented | SAE/USCAR-21 defines test methods for “solderless crimped connections” simulating 15 years and 150,000 miles of stress |
| Crimping onto solder-tinned wire is prohibited | Documented | NASA-STD-8739.4A: “Crimping of solder tinned stranded wire is prohibited” |
| Solder must never be the only mechanical connection | Documented | ABYC E-11.16.3.7: “Solder shall not be the sole means of mechanical connection in any circuit” |
| Splices must not sit where the harness flexes, and must be covered | Documented | NASA-STD-8739.4A: splices “shall not be located in areas of the cable where flexing may occur” and “shall be covered with a single layer of heat-shrinkable tubing” |
| The crimp tool and the terminal must come from the same maker | Documented | TE Connectivity: tools and terminals from different manufacturers “are not engineered to work in tandem, and therefore crimp performance cannot be guaranteed” |
| “Soldering is banned in vehicles” | Folklore | False. Even NASA permits solder splices when “fully wetted, smooth and shiny”. What is prohibited is crimping onto tinned wire, and using solder as the sole mechanical connection |
| “A crimp forms a gas-tight cold weld” | Unverified | Widely repeated, but the phrase does not appear in the TE or Molex crimping handbooks. The documented requirement is correct crimp height and metallurgical compression, not a specific mechanism |
| “Solder wicks up the strands and creates a brittle stress riser” | Rationale, not citation | A sound engineering explanation and standard shop practice, but we could not find it stated in any SAE, USCAR, NASA, TE or Molex document. Presented here as reasoning, not as a cited standard |
| “A standards body bans Scotchlok-type taps” | Not found | No such prohibition found. 3M in fact publishes insulation-displacement connectors specifically designated for low-voltage automotive use. The real objections are partial strand severance, unsealed exposed copper, and gauge mismatch — and the automotive-rated parts are rarely the ones on the shelf |
- Crimp height is the non-destructive check that the terminal has been compressed the right amount — measured with a crimp-height comparator.
- Bell mouth must be visible at both ends of the wire barrel. Without it, the sharp edge of the barrel can cut the strands.
- Conductor brush — strand ends must be visible past the wire barrel on the tongue side, but must not extend into the contact area.
- Insulation crimp wraps the insulation and holds it firmly, slightly indenting it, so vibration loads the insulation grip rather than the conductor.
- Pull test is the destructive check. Aviation practice (FAA AC 43.13-1B) is that the joint should be at least as strong as the wire itself, with negligible added resistance.
Adhesive-lined (dual-wall) heat-shrink is the manufacturer-specified way to seal an automotive splice. Raychem ES2000, for example, is specified for “environmental sealing and electrical insulation of automotive wire splices”, rated −40 °C to +130 °C, with an inner hot-melt layer that forms a barrier against automotive fluids, moisture and water wicking along the strands.
The supply side of a circuit is a single continuous insulated conductor. The return side runs through the body: painted panels, bolted joints and spot welds, in a salt-and-moisture environment. That asymmetry — not bad luck — is why grounds cause a disproportionate share of electrical faults.
When a ground path develops resistance, the current does not simply stop; it looks for an easier route and returns through whatever else is connected — including sensor and module circuits. The symptom is rarely a clean dead circuit. It is noise, odd readings, lights dimming when something unrelated switches on, and fault codes in several modules at once.
| Step | Requirement |
|---|---|
| 1 | Degrease the repair site with a residue-free solvent and let it dry |
| 2 | Remove paint and primer around the connection point until bare metal is visible |
| 3 | Carefully remove any corrosion from the ground terminal itself |
| 4 | Use replacement fasteners with a conductive finish |
| 5 | Apply dielectric lubricant to the fastener threads |
| 6 | Torque to specification — in the GM procedure, M6 to 8 N·m and M8 to 22 N·m |
| 7 | Refinish the area with an anti-corrosion primer, then confirm correct system operation |
- Load the circuit — switch the load on, or crank the engine. No current, no measurement.
- Set a 10 MΩ digital meter to DC volts, low or auto range. Never a test light.
- Black lead on the battery negative post, red lead on the component’s ground terminal. The meter now reads the entire loss in the ground path.
- Compare against the limits above — 0.10 V at a ground connection, 0.20 V across a ground cable.
- Out of spec? Walk the red lead progressively back toward the battery. The segment where the reading collapses contains the fault.
- Test the ground side before the supply side — there are fewer ground paths, and they fail more often.
Sources: ISO 19642-1, SAE J1127 / J1128 scope, IEWC suggested ampacities & temperature corrections, ABYC E-11 bundle derating, The 2 % voltage-drop chart, as published by its own source, Voltage-drop formula and K values, ABYC 3 % / 10 % criteria, Fluke — voltage-drop limits and method, SAE/USCAR-21, TE Connectivity crimping guide, Raychem ES2000 data sheet, GM ground repair procedure.
The tools that make the difference between a repair that lasts and one that comes back.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
Schematic only. Top-post battery shown; many GM-family vehicles use threaded side posts instead. Positive is not always on the left — BCI group sizes are produced in standard and reverse-terminal variants, so identify the posts by their markings and cable size, never by position.
- Negative first, and reconnect it last. With the negative already off, a spanner that slips off the positive post onto grounded metal cannot complete a circuit.
- Expect to lose radio presets, clock, adaptive transmission and idle learning. Some vehicles need a relearn procedure afterwards.
- A memory saver keeps modules alive — but it also keeps the system live, so it defeats the point if you were disconnecting for safety.
- Confirm both batteries are the same nominal voltage, and do not jump a frozen, cracked or visibly leaking battery.
- Red clamp to the flat battery’s positive.
- Red clamp to the good battery’s positive.
- Black clamp to the good battery’s negative.
- Black clamp to unpainted engine metal or a dedicated ground point on the flat vehicle — not to its battery negative, and clear of the fuel system, belts and pulleys.
- Remove the clamps in the exact reverse order.
Functional schematic. The physical arrangement of these terminals is not standardised — it varies by manufacturer and starter family, so identify them by size and marking rather than by position.
| Terminal | DIN 72552 | Function |
|---|---|---|
| B (or 30) | 30 | Heavy battery cable, direct from the battery positive. On most vehicles it lands straight on the starter stud; some older designs (notably Ford) route it through a remote, body-mounted starter solenoid/relay instead |
| S | 50 | Start signal from the ignition switch or starter relay. It energises both solenoid windings — the high-current pull-in winding that throws the pinion, and the lower-current hold-in winding that keeps it engaged |
| M | — | Solenoid output to the motor windings. Brought out as a separate stud on some designs, connected internally on others |
| R (where fitted) | — | Bypass feed to the ignition coil during cranking on some older systems |
Reference schematic only — terminal positions are not standardised and this drawing does not represent any specific unit. On a real alternator the small signal terminals are normally grouped into a single moulded plug (Bosch 2- or 4-pin, Denso 3-pin, Valeo oval 4-pin) rather than spread around the case; only B+ is a separate stud.
| Terminal | Also seen as | Function |
|---|---|---|
| B+ | BAT, 30, A | Main charging output to the battery — the heavy stud. On some smart-charge and 48 V units the output is a bolted busbar rather than a cable |
| D+ | L, IND, 61 | Charge warning lamp circuit. It also provides the initial field excitation on many designs — which is why a blown warning-lamp bulb can stop an alternator charging at all |
| DF | F, F1/F2 | Field connection, used where the regulator is external or where the field is driven from outside the unit |
| S | — | Voltage sense, taken directly at the battery so the regulator compensates for cable drop |
| IG | — | Switched +12 V from the ignition, used to wake the regulator |
| FR | DFM | Field monitor — a PWM duty-cycle output that reports alternator load to the ECU on smart-charging systems |
| W | P, T | Stator phase tap. An AC waveform taken off one stator winding, used to drive a tachometer or give an engine-speed signal — not a field monitor |
Sources: DIN 72552 terminal codes, Regulator terminals explained, Alternator terminals (P/T/W stator taps), Alternator connector families, Starter solenoid terminal codes, AAA jump-starting procedure, Starting/charging voltage-drop specifications.
For diagnosing batteries, starters and alternators.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
Five-pin connector as used on the Bosch HFM 5 hot-film family. Pin functions are specific to this sensor family — MAF wiring differs more between manufacturers than almost any other sensor, so confirm against the part number before probing.
| Pin | Bosch HFM 5 function |
|---|---|
| 1 | Additional temperature sensor (intake air temperature) |
| 2 | Supply voltage |
| 3 | Signal ground |
| 4 | Reference voltage |
| 5 | Measurement signal — the air-flow output to the ECU |
A heated element sits in the intake stream. The circuit measures the power needed to hold it at a fixed temperature above ambient; more air mass flowing past means more cooling, so more power. That power demand is converted into the output signal, which is why a MAF reads mass rather than volume and therefore already accounts for air density.
Two families exist and they need different test methods: analogue sensors output a 0–5 V signal (read it on a voltmeter), while digital/frequency types output a square wave whose frequency varies with flow (you need a meter with a frequency range, or a scope). We deliberately publish no universal idle-versus-WOT figures here: the real values differ by an order of magnitude between the two families and between engine sizes, so any “should read X at idle” chart that does not name the exact sensor is worthless.
| Wire | Function |
|---|---|
| Reference | +5 V supply from the ECU |
| Ground | Sensor ground, returned to the ECU rather than to the chassis on most designs |
| Signal | Output to the ECU — voltage rises as manifold pressure rises (i.e. as vacuum falls toward atmospheric) |
| Wire | Function |
|---|---|
| Supply | Switched +12 V common feed, usually from the main or injector relay |
| Control | ECU low-side driver — the ECU fires the injector by pulling this to ground |
| Injector type | Typical resistance | Driver behaviour |
|---|---|---|
| High-impedance / “saturated” | ~12–16 Ω | Simple on/off; current settles at roughly 0.8–1 A while open |
| Low-impedance / “peak-and-hold” | ~2–4 Ω | Opens with a high current peak (around 4–5 A) then drops to a hold current (around 0.5 A) |
Sources: Bosch HFM 5 data sheet (terminal assignment), MAF sensor types and outputs, MAP sensor operation, GM 3-bar MAP pin order, Injector driver types and currents, Injector impedance data, Injector polarity.
For testing and cleaning these components.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
A bulb category like “H7” is not a brand or a size — it is a type approval. UN Regulation 37 specifies the cap, the rated voltage and wattage, the filament geometry to tight tolerances, and the luminous flux. That last point is the key to everything else on this page: a headlamp reflector is a precision optic designed around one exact filament position.
| Regulation | What it covers |
|---|---|
| UN R37 | Filament light sources — H1, H3, H4, H7, H8, H9, H11, H15, HB3, HB4, HIR2, plus signal bulbs such as W5W, P21W, P21/5W, PY21W, W21W, WY21W |
| UN R99 | Gas-discharge (HID) light sources — D1R/S, D2R/S, D3R/S, D4R/S |
| UN R128 | LED light sources used in type-approved lamp units |
| UN R112 | The halogen/LED headlamp unit itself (asymmetrical passing beam and/or driving beam) |
| UN R98 | Headlamp units with gas-discharge light sources |
| UN R48 | Installation — where lamps go on the vehicle, aim, levelling and cleaning requirements |
| FMVSS 108 | 49 CFR 571.108 — the entire US requirement: lamps, photometry, marking, and which replaceable light sources are legal (listed under 49 CFR Part 564) |
| Category | ANSI | Cap | Rated | Current @12 V* | Typical use |
|---|---|---|---|---|---|
| H1 | — | P14.5s | 12 V 55 W | 4.58 A | Single filament: low beam, high beam, fog or driving lamps |
| H3 | — | PK22s | 12 V 55 W | 4.58 A | Fog and driving lamps (flying-lead cap) |
| H4 | 9003 / HB2 | P43t | 12 V 60/55 W | 5.00 / 4.58 A | Dual filament — combined high and low beam in single-headlamp systems |
| H7 | — | PX26d | 12 V 55 W | 4.58 A | Single filament, low or high beam in four-lamp systems — the most common European fitment |
| H8 | — | PGJ19-1 | 12 V 35 W | 2.92 A | Fog lamps |
| H9 | — | PGJ19-5 | 12 V 65 W | 5.42 A | High beam only |
| H11 | — | PGJ19-2 | 12 V 55 W | 4.58 A | Low beam and fog lamps |
| H15 | — | PGJ23t-1 | 12 V 55/15 W | 4.58 / 1.25 A | Dual filament — 15 W daytime running light plus 55 W high beam |
| HB3 | 9005 | P20d | 12 V 60 W | 5.00 A | High beam, and some low beams |
| HB4 | 9006 | P22d | 12 V 51 W | 4.25 A | Low beam and fog |
| HIR2 | 9012 | PX22d | 12 V 55 W | 4.58 A | Infrared-coated higher-efficiency low beam |
*Current is calculated as I = P ÷ V at the rated 12.0 V, not quoted from a specification — no published amperage table exists for these categories. A running vehicle sits at roughly 13.5–14.4 V, so real current is proportionally higher. Cap designations follow IEC 60061; verify against a data sheet if you are sourcing an unusual type.
| Category | Cap | Power | Notes |
|---|---|---|---|
| D1S | PK32d-2 | 35 W | Igniter integrated in the bulb base |
| D2S | P32d-2 | 35 W | External igniter (in the ballast) |
| D3S | PK32d-5 | 35 W | Integrated igniter, mercury-free |
| D4S | P32d-5 | 35 W | External igniter, mercury-free |
The “R” suffix variants (D1R, D2R…) are the reflector-optic versions with a shield; “S” variants are for projector optics.
| Category | ANSI | Cap | Rated | Use |
|---|---|---|---|---|
| W5W | 194 / 168 | W2.1×9.5d | 5 W | Position, plate, interior, side marker |
| P21W | 1156 | BA15s | 21 W | Brake, reverse, rear fog, indicator |
| P21/5W | 1157 | BAY15d | 21/5 W | Combined brake + tail |
| PY21W | — | BAU15s | 21 W | Indicator — amber glass |
| W21W | 7440 | W3×16d | 21 W | Brake, reverse, indicator (wedge) |
| WY21W | — | WX3×16d | 21 W | Indicator — amber glass (wedge) |
| W21/5W | 7443 | W3×16q | 21/5 W | Combined brake + tail (wedge) |
| Aspect | ECE (UNECE) | SAE / FMVSS 108 (US & Canada) |
|---|---|---|
| Compliance route | Type approval — an authority tests and issues an E-mark before sale | Self-certification — the maker certifies conformity and marks the lens “DOT” |
| Low-beam pattern | Sharp asymmetric cut-off: flat and low on the side facing oncoming traffic, sloping up toward the kerb | Also asymmetric, but the oncoming side is not as low and the kerb side is flat rather than sloped |
| High-beam intensity | Higher maximum permitted | Lower maximum permitted |
| Rear indicator colour | Amber required in most markets | Red rear indicators permitted |
| Headlamp levelling | Required, and automatic where the installation rules demand it (R48 6.2.6.2) | No equivalent general requirement |
| Headlamp cleaning | Required where the dipped beam source exceeds 2 000 lumen (R48 6.2.9) — this is why European HID cars have headlamp washers | No equivalent requirement |
| Mutual recognition | None. An E-marked headlamp is not legal equipment in the US, and a DOT headlamp is not type-approved in UNECE markets. This is the point that catches out importers and parts buyers | |
The compliance-route, levelling and cleaning rows come from the primary regulatory texts. The beam-pattern, high-beam and indicator-colour comparisons come from a single reference work rather than a side-by-side regulatory study, so treat them as a good general description rather than a quotable specification.
A halogen reflector or projector is built around one specific filament: its exact position, length and diameter, emitting in a near-360° cylinder. UN R37 pins that geometry down precisely so that any compliant bulb reproduces the same source.
An LED retrofit cannot reproduce it. LEDs are flat emitters on a board, so the light comes from the wrong place relative to the reflector focus, in two lobes instead of a cylinder. Parts of the reflector go unlit and others are over-lit, the cut-off degrades, and light that should stay below it is thrown above as glare. Total lumens can rise while useful light on the road falls.
- United States. NHTSA’s published interpretation is explicit: no LED light source is currently permitted in a replaceable-bulb headlamp, none has been listed in the Part 564 docket, and LED replacement bulbs on the market do not conform to FMVSS 108. NHTSA regulates manufacture and sale rather than what an owner fits, so on-road use is a matter of state vehicle codes.
- United Kingdom. The MOT inspection manual instructs testers to fail a headlamp where an existing halogen unit has been converted to HID or LED. Since 22 March 2021 there are narrow exemptions for motorcycles and for vehicles first used before 1 April 1986.
- UNECE. UN R37 was amended to create a category of LED retrofit light source (“LEDr”), and the first approved LEDr bulbs have begun to appear. A retrofit is legal only if it carries a genuine LEDr approval and is on the approved vehicle/lamp combination list.
A bulb-out warning after fitting LEDs has nothing to do with the CAN bus. The bus only carries the message to the dashboard; the detection happens in the lamp driver circuit inside the body control module. There are three mechanisms, and knowing which one you are fighting tells you what will actually fix it.
Sources: UN Regulation 37, UN Regulation 99, UN Regulation 48, FMVSS 108, NHTSA interpretation on LED headlight bulbs, DVSA MOT Special Notice 01/21, Infineon PROFET 12 V application note (bulb monitoring, inrush, PWM), Ring Automotive 12 V bulb reference.
For bulb changes and beam work done properly.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
A window, lock, mirror or seat motor is a plain two-wire reversible DC motor. There is no direction wire — polarity decides which way it runs, so the switch has to be able to feed either wire with +12 V while the other goes to ground.
| Switch position | Terminal A | Terminal B | Result |
|---|---|---|---|
| Up / lock | +12 V | Ground | Motor runs one way |
| Down / unlock | Ground | +12 V | Motor runs the other way |
| At rest | Both terminals connected to the same node | Motor stops | |
Anti-pinch (“anti-trap”) systems detect an obstruction and reverse the glass. Two mechanisms are used, often together, and both are implemented in a control module rather than in the switch:
The dominant design is an electric actuator in each door — a two-wire reversible motor or solenoid, driven by a body control module that reverses polarity for lock and unlock. Door modules on modern vehicles are usually LIN slaves hanging off the body CAN bus.
Sources: Power window operation, Anti-pinch mechanisms, EP1402611B1 (anti-trap current and Hall sensing), Power window switch circuits.
For diagnosing and replacing these components.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
The standard aftermarket wiring-harness color code used across most adapter harnesses worldwide.
| Pin | Wire color | Function |
|---|---|---|
| A4 | Yellow | Permanent +12V (battery, keeps memory/clock/presets alive) |
| A5 | Blue | Power antenna / electric aerial output — frequently repurposed as amplifier remote turn-on in aftermarket installs |
| A7 | Red | Switched +12V (ignition/accessory) |
| A8 | Black | Ground (chassis) |
Each channel is a +/− pair.
| Pin | Wire color | Channel |
|---|---|---|
| B1 | Purple | Right Rear + |
| B2 | Purple/Black | Right Rear − |
| B3 | Grey | Right Front + |
| B4 | Grey/Black | Right Front − |
| B5 | White | Left Front + |
| B6 | White/Black | Left Front − |
| B7 | Green | Left Rear + |
| B8 | Green/Black | Left Rear − |
Connector A (16-pin) — power, speakers, CAN
| Pin | Function |
|---|---|
| 1 | Rear right speaker (+) |
| 2 | Front right speaker (+) |
| 3 | Front left speaker (+) |
| 4 | Rear left speaker (+) |
| 5 | Rear right speaker (−) |
| 6 | Front right speaker (−) |
| 7 | Front left speaker (−) |
| 8 | Rear left speaker (−) |
| 9 | CAN bus high |
| 10 | CAN bus low |
| 11 | Varies by head-unit variant — supply voltage+ (nav units) or telephone mute (base radios); see note |
| 12 | Ground / terminal 31 |
| 13 | Display CAN bus − (nav-equipped units only) |
| 14 | Display CAN bus + (nav-equipped units only) |
| 15 | Battery positive / terminal 30 |
| 16 | Anti-theft/immobilizer signal (SAFE) |
Connector B (12-pin) — AUX / CD changer
| Pin | Function |
|---|---|
| 1 | AUX audio in, left (+) |
| 2 | AUX audio in (−) |
| 3 | CD changer audio (−) |
| 4 | CD changer +12V supply |
| 6 | CD changer data-out bus |
| 7 | AUX audio in, right (+) |
| 8 | CD changer left audio (+) |
| 9 | CD changer right audio (+) |
| 10 | CD changer control signal |
| 11 | CD changer data-in bus |
| 12 | CD changer clock bus |
Connector C (12-pin) — microphone / telephone
| Pin | Function |
|---|---|
| 1 | Mic input (−) |
| 2 | AUX audio out, right (+) |
| 3 | AUX audio out (−) |
| 4 | Mic output (−) |
| 5 | Telephone signal in, left (−) |
| 6 | Telephone signal in, right (−) |
| 7 | Mic input (+) |
| 8 | AUX audio out, left (+) |
| 9 | Mic output (+) |
| 10 | Telephone mute |
| 11 | Telephone signal in, left (+) |
| 12 | Telephone signal in, right (+) |
| Pin | Color | UQ3 / UQ5 function | UQ7 function |
|---|---|---|---|
| 1 | Orange | Radio Class 2 Serial Data | — |
| 3 | Purple | — | Rear Seat Audio Enable (w/o Y91) |
| 4 | Red | — | FM Composite Signal (w/ Y91) |
| 8 | Tan | Left Front Speaker (+) | Left Front Low-Level Audio (+) |
| 9 | Grey or Dk Green | Left Front Speaker (−) | Left Front Low-Level Audio (−) |
| 10 | Lt Blue or Black | Right Rear Speaker (−) | Right Rear Low-Level Audio (−) |
| 11 | Dk Blue | Right Rear Speaker (+) | Right Rear Low-Level Audio (+) |
| 12 | Black/White | Ground | Ground |
| B1 | Orange | Battery Positive Voltage | — |
| B3 | Pink or Dk Green | — | Radio On Signal (w/o Y91) |
| B4 | Brown/White | Instrument-panel dimming (w/ Y91) | — |
| B5 | Black | Ground (w/ Y91) | — |
| B6 | Grey/Black | — | Radio Mute (w/o Y91) |
| B8 | Brown | Left Rear Speaker (+) | Left Rear Low-Level Audio (+) |
| B9 | Yellow or Dk Green/White | Left Rear Speaker (−) | Left Rear Low-Level Audio (−) |
| B10 | Dk Green or Orange/Black | Right Front Speaker (+) | Right Front Low-Level Audio (−)* |
| B11 | Lt Green | Right Front Speaker (−) | Right Front Low-Level Audio (+)* |
C240A (24-pin)
| Pin | Color | Function |
|---|---|---|
| 1 | White/Red | Fused Battery+ |
| 5 | Yellow/Orange | +12V Power Antenna Motor |
| 7 | Yellow/Violet | Audio Enable / Clipping |
| 8 | White | Speaker LF Door Woofer (+) |
| 9 | White/Green | Speaker LR (+) |
| 10 | Brown/White | Speaker RR (+) |
| 11 | White/Violet | Speaker RF Door Woofer (+) |
| 12 | White/Orange | Speaker RF Door Woofer (−) |
| 13 | Black/Blue | Ground |
| 15 | Grey/Violet | Start (+12V in) |
| 18 | Grey/Yellow | Steering-wheel control signal + |
| 19 | Brown/Green | Steering-wheel control return |
| 21 | White/Brown | Speaker LF Door Woofer (−) |
| 22 | Brown/Yellow | Speaker LR (−) |
| 23 | Brown/Blue | Speaker RR (−) |
| 24 | Orange | Shield |
C240C (16-pin)
| Pin | Color | Function |
|---|---|---|
| 3 | Orange | Shield |
| 6 | Blue/Green | External AUX In Right (+) |
| 7 | Blue | External AUX In Left (+) |
| 8 | Yellow/Green | External AUX In Left (−) |
| 14 | White/Green | External AUX In Right (−) |
| 15 | Grey/Orange | Medium-Speed CAN High |
| 16 | Violet/Orange | Medium-Speed CAN Low |
10-pin (front speakers / power)
| Pin | Color | Function |
|---|---|---|
| 1 | Light Green | Front Right (+) |
| 2 | Pink | Front Left (+) |
| 3 | Grey | ACC |
| 4 | Sky Blue | Battery+ |
| 5 | Blue | Front Right (−) |
| 6 | Violet | Front Left (−) |
| 7 | Brown | Ground |
6-pin (rear speakers)
| Pin | Color | Function |
|---|---|---|
| 1 | Red | Rear Right (+) |
| 2 | Black | Rear Left (+) |
| 3 | White | Rear Right (−) |
| 6 | Yellow | Rear Left (−) |
28-pin accessory connector (function only — colors not reliable, see note above)
| Pin | Function |
|---|---|
| 4 | Mic power (MACC) |
| 5 | Mic input (+) |
| 6 | Mic detection (SNS2) |
| 9 / 10 | CAN-H / CAN-L (display radio only) |
| 11 | Audio ground shield |
| 17 | Vehicle speed signal |
| 18 | Mic shield |
| 19 | Mic input (−) |
| 21 / 22 / 23 | Steering-wheel switch signals |
| 25 | Device detect |
| 26 | External audio in, right (+) |
| 27 | Audio return |
| 28 | External audio in, left (+) |
2016–2019 Honda Civic navigation head unit (different, newer connector, part numbers 39101-TGG-A01-M1 family) — single source, no wire colors
| Pin | Function |
|---|---|
| 5 | Hands-free mute (mic directivity switching) |
| 6 | Mic shield |
| 7 | Mic power |
| 10 | IG1 (meter power source) |
| 13 | Camera VCC |
| 14 | Camera ground |
| 15 | Reverse / back-light detection |
| 16 | Camera-connected detect |
| 22 | Mic audio (+) |
| 23 | Mic ground |
| 28 | Camera shield |
| 29 | Camera video (NTSC) |
| 31 / 32 | Camera mode-select bits |
BMW E46 (2000–2006-era “Business CD”), single source, model-specific
| Pin | Color | Function |
|---|---|---|
| 1 | — | Rear Right (+) |
| 2 | — | Front Right (+) |
| 3 | — | Front Left (+) |
| 4 | — | Rear Left (+) |
| 9 | — | I-Bus / CAN bus (+) |
| 12 | — | Ground |
| 13 | Blue | Antenna out |
| 14 | Orange | Illumination |
| 15 | Yellow | +12V battery |
| 16 | Red | +12V switched |
BMW CIC head unit (2007–2016, most 3/5/7-series and X-models of that era), single source
| Pin | Function | Pin | Function |
|---|---|---|---|
| 1 | Rear Right (+) | 21 | Video signal+ (TRSVC) |
| 2 | Front Right (+) | 22 | Mic (−) |
| 3 | Front Left (+) | 24 | Video signal− (TRSVC) |
| 4 | Rear Left (+) | 28 | Video signal+ (baseplate) |
| 9 | CAN Low | 29 | Ethernet A (OBD 8) |
| 11 | CAN High | 30 | AUX In Left |
| 12 | Ground | 31 | Ethernet TX+ (OBD 12) |
| 13 | Radio ON (CIC) | 33 | Mic1 shield |
| 15 | +12V Power (20A) | 35 | AUX In Right |
| 17 | Mic1 (+) | 36 | AUX In ground |
| 18 | Mic2 (+) | 37 | Ethernet RX+ (OBD 3) |
| 19 | Mic2 (−) | 39 | AUX shield |
Mini R50 / R52 / R53 (2002–2008), single source — same Quadlock shell, different pin map from both BMW tables above
| Pin | Function |
|---|---|
| 1 | Front Left (+) |
| 2 | Front Right (+) |
| 3 | Rear Left (+) |
| 5 | Terminal R voltage supply |
| 6 | Rear Right (+) |
| 7 | K-bus |
| 8 | Front Left (−) |
| 9 | Terminal 30 voltage supply |
| 11 | Front Right (−) |
| 12 | Rear Left (−) |
| 13 | Signal / locator lighting |
| 14 | Rear Right (−) |
| 15 | Ground |
| 16 | Radio ON |
22-pin (∼2002–2010)
| Pin | Function |
|---|---|
| 1 | +12V battery |
| 2 | +12V accessory |
| 3 | Panel lamps (driver) |
| 7 | Right Front speaker (+) |
| 8 | Right Front speaker (−) |
| 9 | Left Front speaker (−) |
| 10 | Left Front speaker (+) |
| 11 | Chassis ground |
| 12 | +12V battery |
| 13 | +12V radio out |
| 14 | PCI bus (SAE J1850 VPW) |
| 18 | Left Rear speaker (+) |
| 19 | Left Rear speaker (−) |
| 20 | Right Rear speaker (−) |
| 21 | Right Rear speaker (+) |
| 22 | Chassis ground |
52-pin “Uconnect” connector (colors from 2018 Jeep Wrangler JL — see caution above)
| Pin | Function | Color |
|---|---|---|
| 1 | CAN C (+) AT | Grey |
| 2 | CAN IHS (+) AT | Dk Blue |
| 6 | AUX Audio RH signal | Green/Blue |
| 7 | AUX Audio common | Green/Dk Blue |
| 11 | CAN C (−) AT | Yellow/Violet |
| 12 | CAN IHS (−) AT | White |
| 16 | AUX Audio LH signal | Green/Tan |
| 17 | AUX connection detect | Green/Yellow |
| 29 | Hands-free Mic1 in (−) | Lt Blue/Dk Green |
| 30 | Hands-free Mic1 in (+) | Dk Blue/Lt Blue |
| 39 | Hands-free Mic2 in (+) | Lt Blue/Tan |
| 40 | Hands-free Mic2 in (−) | Lt Blue/Dk Green |
| 43 | Ground | Black/Green |
| 44 | Battery+ | Red/Yellow |
| 45 | Rear Right speaker (+) | Dk Green/Green |
| 46 | Right Front speaker (+) | Dk Green/Violet |
| 47 | Left Front speaker (+) | Grey/Violet |
| 48 | Rear Left speaker (+) | Grey/Green |
| 49 | Rear Right speaker (−) | Dk Green/Grey |
| 50 | Right Front speaker (−) | Dk Green/Yellow |
| 51 | Left Front speaker (−) | Grey/Yellow |
| 52 | Rear Left speaker (−) | Grey/Dk Green |
18-pin “Head Unit A” (Kia Ceed 2013–2017, part 96560-A2000WK)
| Pin | Function |
|---|---|
| 1 | Rear Left speaker (+) |
| 2 | Front Left speaker (+) |
| 3 | Front Right speaker (+) |
| 4 | Rear Right speaker (+) |
| 8 | Illumination (+) |
| 9 | Reverse signal |
| 10–13 | Speaker grounds |
| 16 | Door unlock status |
| 17 | Illumination (−) |
| 18 | Antenna power |
24-pin “Head Unit B”
| Pin | Function |
|---|---|
| 1 | Multimedia CAN High |
| 4 | Steering-wheel key signal |
| 7 | AUX video |
| 8–9 | AUX Audio Right / ground |
| 10 | Mic signal (+) |
| 11–12 | Battery (+) |
| 13 | Multimedia CAN Low |
| 14 | Auto light |
| 15 | Park (P) position |
| 16 | Speed signal |
| 18 | Accessory (ACC) |
Newer Hyundai scheme — Kona (2018–2021), part 96160-J9160TMT, single source, no colors
| Connector | Pin | Function |
|---|---|---|
| A (38-pin) | 1 / 2 | Rear Left speaker (+/−) |
| A | 13 / 14 | Front Left speaker (+/−) |
| A | 15 / 16 | Front Right speaker (−/+) |
| A | 27 / 28 | Rear Right speaker (−/+) |
| A | 10 | AUX audio, right |
| A | 24 | AUX audio, left |
| A | 38 | Speed signal |
| B (35-pin) | 7 / 20 | Multimedia CAN High / Low |
| B | 10 / 11 | Battery (+) |
| B | 6 | Illumination (+) |
| B | 19 | Illumination (−) |
| B | 22 | Accessory (ACC) |
| B | 2 | Mic signal |
| C (21-pin, amplifier) | 2 | Chassis CAN High |
| C | 9 | Chassis CAN Low |
20-pin baseline connector (∼2007–2018 across many Nissan/Infiniti models) — pin function/position
| Pin | Function |
|---|---|
| 2 | Front Left speaker (+) |
| 3 | Front Left speaker (−) |
| 7 | Accessory power |
| 8 | Illumination (−) |
| 9 | Illumination (+) |
| 11 | Front Right speaker (+) |
| 12 | Front Right speaker (−) |
| 19 | Battery power |
Same pins, different colors by source/model-year — illustrates the drift, not a code to copy
| Pin | Function | Metra harness (2007–09) | Altima 2009–12 (source code) | Altima 2013–16 (source code) |
|---|---|---|---|---|
| 2 | FL (+) | White | W | V |
| 3 | FL (−) | White/Black | B | SB |
| 7 | ACC | Red | V/Y | P |
| 8 | Illum (−) | Orange/Black | R/Y | GR |
| 9 | Illum (+) | Orange | R/L | R |
| 11 | FR (+) | Grey | G/W | Y |
| 12 | FR (−) | Grey/Black | BR | BR |
| 19 | Battery | Yellow | Y/R | Y |
- A vehicle-specific ISO harness adapter (a short pigtail that converts the factory connector to a standard ISO plug) makes most aftermarket head unit swaps a plug-and-play job without cutting factory wiring.
- Steering-wheel control (SWC) buttons are almost never wired individually — they work as a resistor ladder on one or two signal wires, with each button producing a different resistance/voltage. A dedicated SWC interface module is needed to translate this into commands the new head unit understands, and it usually needs to be programmed for the specific vehicle.
- On factory-fitted premium/amplified systems, the head unit often outputs a low-level or digital signal to a separate amplifier rather than driving the speakers directly — a standard ISO harness will not work correctly without a matching amplifier bypass/integration harness.
For head unit installs and speaker upgrades.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
| Colour | Frequently used for | The exception that will catch you out |
|---|---|---|
| Black | Ground / chassis return — the closest thing to a universal rule, especially in North American harnesses | Not absolute: always confirm against the OEM diagram |
| Red | Constant (unswitched) battery power on most general harnesses | Reversed in car audio: in an ISO 10487 connector, A7 red is the switched ignition feed and A4 yellow is the permanent battery feed |
| Brown | Highly context-dependent — see the warning below | Ground in German/DIN practice; tail/running lights in North American trailer wiring |
| Yellow | Memory/permanent power on radios; left-side signals on trailer wiring | Also used for airbag circuits on some harnesses — another reason not to probe blind |
| Green | Right-side signals on trailer wiring; various switched circuits | No general meaning at all outside trailer wiring |
| Blue | Electric trailer brakes; power-antenna / amplifier remote on audio harnesses | Door and courtesy circuits on some harnesses |
Wiring diagrams use several distinct symbols that are often described loosely:
- Decreasing horizontal bars — formally the earth-ground symbol; in automotive diagrams this is what usually marks a body, engine or frame ground.
- Diagonal-hatched symbol — formally chassis ground.
- Hollow downward triangle — normally signal or reference ground, not chassis ground.
- ECU / ECM
- Engine Control Unit / Module — the computer managing fuel, ignition and, on modern vehicles, much else. “Module” is used generically for any of the dozens of controllers on a vehicle.
- CAN bus
- Controller Area Network — a two-wire differential digital bus (CAN-H / CAN-L) linking modules. Mandatory as the OBD-II basis on US-market vehicles from model year 2008.
- LIN bus
- Local Interconnect Network — a cheap single-wire, master/slave sub-network for slow devices such as mirrors, window motors and HVAC flaps, usually hanging off a CAN module.
- OBD-II / EOBD
- On-Board Diagnostics, second generation — the standardised connector (SAE J1962) and the core emissions-related data set. EOBD is the equivalent European mandate using the same connector.
- DIN 72552 terminal code
- The numbering used across European wiring diagrams: 30 = permanent battery positive, 31 = ground, 15 = switched ignition, 50 = starter control, 58L/58R = left/right tail, 85/86 = relay coil, 87 = relay output.
- Peak-and-hold vs. saturated injector
- Two injector driver strategies with different coil designs. Saturated (high-impedance, ~12–16 Ω) switches simply on and off; peak-and-hold (low-impedance, ~2–4 Ω) applies a high opening current then drops to a lower hold current.
- Back-probing
- Testing a connector by sliding a fine probe alongside the wire into the back of the housing, rather than piercing the insulation. Piercing breaks the seal and starts corrosion that returns as a fault later.
- Voltage drop
- The voltage lost across a connection, cable or switch while current flows. The single most useful electrical test on a vehicle, because it finds bad joints that a continuity check passes.
- Flyback / freewheel diode
- A diode fitted across an inductive load such as a relay coil so that, when the circuit is switched off, the collapsing magnetic field has a path to circulate its current instead of forcing a high-voltage spike. It clamps the spike to about a volt; the stored energy is then dissipated as heat in the coil’s own winding resistance — not in the diode.
- Duty cycle
- The percentage of each cycle a switched signal spends “on”. Used to control things like PWM cooling fans and LED dimming. Note that fuel injectors are commanded by an absolute pulse width in milliseconds — injector duty cycle is a derived diagnostic figure showing how hard the injectors are working, not the control input.
- Inrush current
- The brief high current drawn when a cold filament lamp or a stalled motor is first switched on — roughly ten times the steady figure for a filament bulb. It drives fuse, relay and switch sizing.
- Ampacity
- The current a conductor can carry continuously without exceeding its insulation’s temperature rating. It depends on insulation class, ambient temperature and bundling — but not on length. Length governs voltage drop.
- Parasitic draw
- The current a vehicle consumes with everything switched off. Modern vehicles legitimately draw some, and only settle after the modules sleep — which can take up to an hour, so a measurement taken too early looks like a fault.
Sources: DIN 72551-7 (cable colours), ISO 6722-1 scope, North American trailer wiring colours, ISO 10487 A4/A7 assignment, Chassis, earth and signal ground symbols, Flyback diode operation.
Automotive electrical work needs surprisingly little equipment — but the few things it does need have to be the right ones. Buy in this order and each step earns its place before the next.
Auto-ranging, 10 MΩ input impedance, with DC volts, resistance, continuity and ideally frequency and duty cycle. This one tool does 90 % of the work on this page.
Fine needle probes that slide in behind a connector seal. Without them you will end up piercing insulation, which is how today’s repair becomes next winter’s intermittent fault.
With dies matched to the terminals you actually use. A ratcheting tool will not release until full compression is reached, which is exactly what makes a crimp repeatable.
Even a basic Bluetooth adapter turns guesswork into a starting point. Codes tell you which circuit to test — they do not tell you which part to replace.
Useful for quickly confirming power and ground on high-current circuits — lighting, motors, relays. Not for modules.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
Some links on this page are affiliate links. If you buy through them we may earn a small commission at no extra cost to you — replace the placeholder URLs above with your own Pretty Links before publishing.
- Fuse every new circuit at the source, as close to the battery as practical — an unfused length of cable between the battery and the fuse is the part that starts fires.
- Size the wire for voltage drop over the full round trip, then fuse to protect that wire.
- Use cross-linked (GXL/TXL) wire anywhere under the bonnet; PVC primary wire loses most of its rating at engine-bay temperatures.
- Grommet every panel pass-through and never let a harness rest against a sharp edge or an exhaust component.
- Make grounds to clean bare metal with a proper fastener and torque, and keep dielectric grease on the threads rather than in the joint.
- Seal every splice with adhesive-lined heat-shrink, and put splices where the loom does not flex.
- Leave a service loop — a few extra centimetres — at every connector so the next repair has something to work with.
- Label anything you add. The person diagnosing it in five years may well be you.
